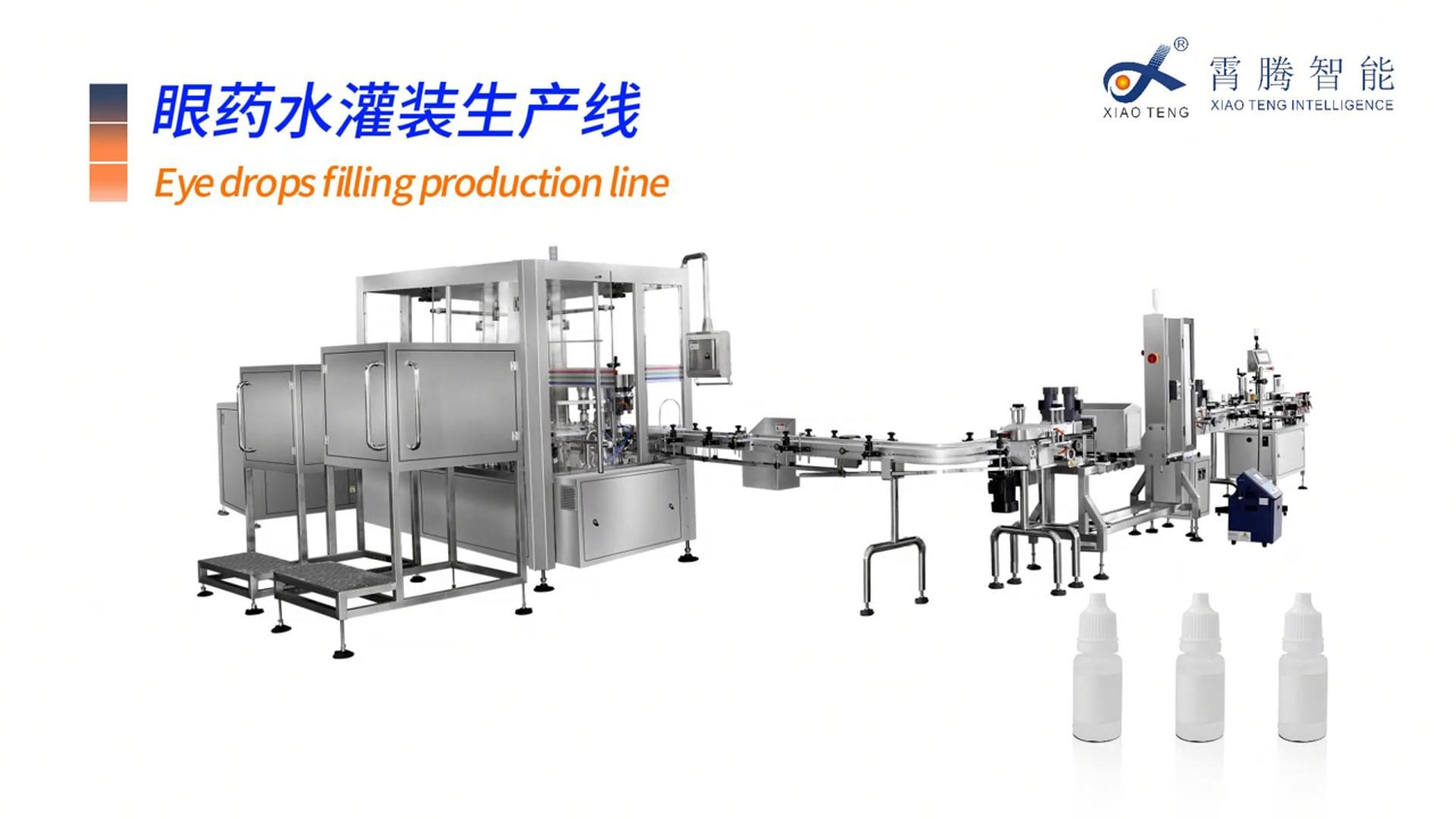

Eye Drops Filling Production Line

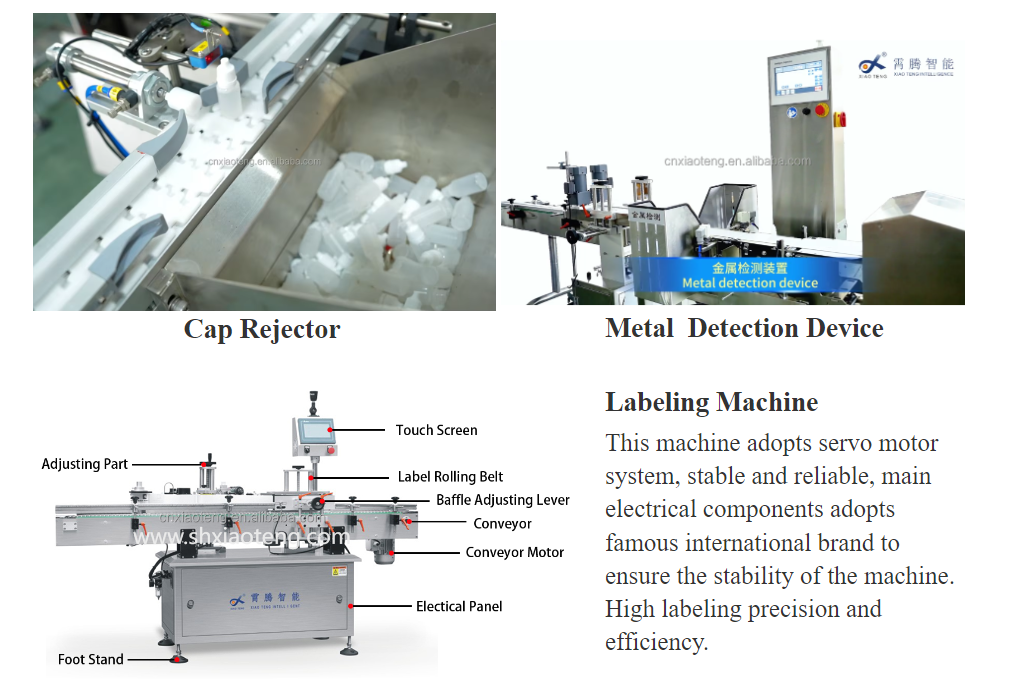

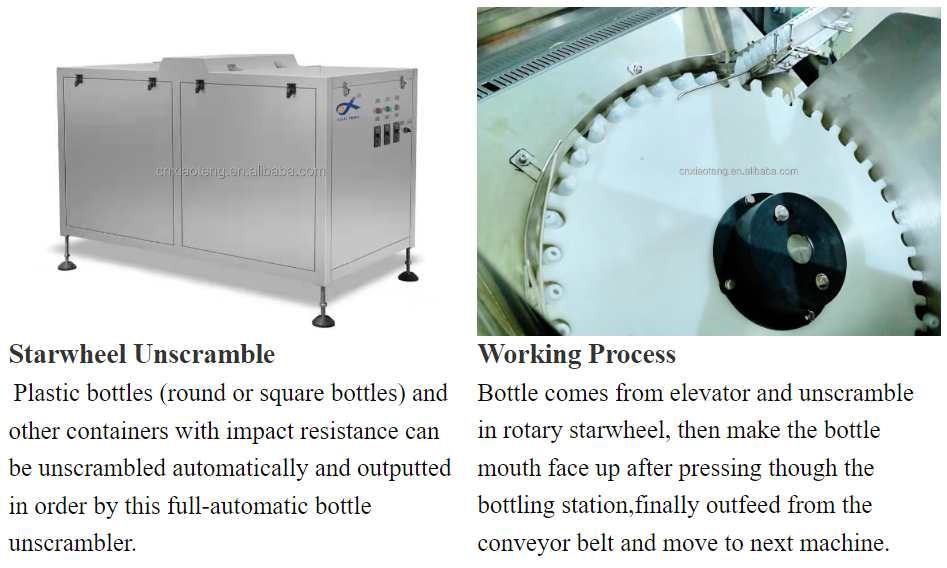

The Eye drops filling production line is composed of five types of equipment: Bottle unscrambler, Liquid filling plugging and capping machine,Cap Rejector,Metal Detection Device and Labeling Machine.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product Details
| Product Name | Bottle Unscrambler |
| Labeling Speed | 10-120 bottles/min(Related to bottle and label size) |
| Labeling Accuray | ±1mm |
| Material Size | Φ40-φ 90mm (H) 40-100mm |
| Machine Size | 1200*1150*1300mm |
| Weight | 380KG |
Filling And Capping Device

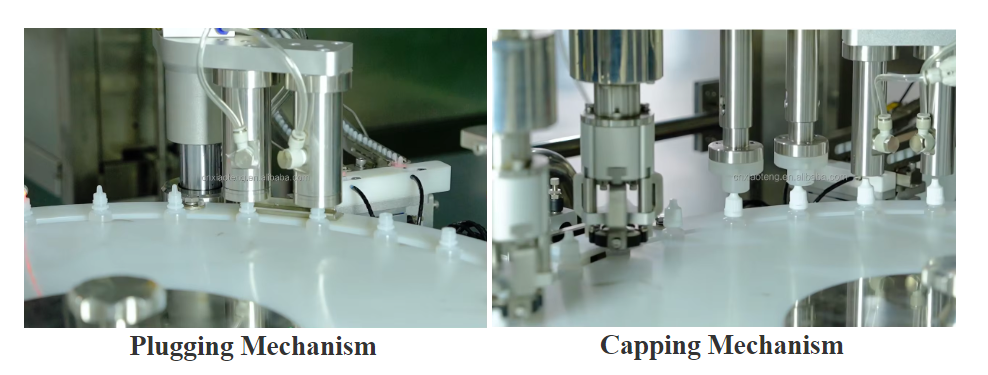

Automatic filling, plugging &capping machine for the application of round /flat small bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on. The machine is composed by a conveyor,fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system.
| Product Name | Automatic Filling Capping Machine | ||
| Filling Speed | 50-80b/m50-80b/m | ||
| Bottle Size | Min. Ø 20mm Max. Ø30mm | ||
| Filling Volume | 5-50ml | ||
| Filling Accuracy |
±1
|
||
| Power Supply | 3 Phase, 380V, 50Hz | ||
| Power | 1500W | ||
| Compress air require | 100L/min, 4~6bar | ||
| Machine Size | 2500*1800*1950mm | ||
| Weight | 1400KG | ||
| Product Name | Automatic Labeling Machine |
| Labeling Speed | 10-150 bottles/min(Related to bottle and label size) |
| Labeling Accuracy | ±1mm |
| Suitable bottle Diameter | （L）20-280（W）30-140mm |
| Material Size | L）25-85mm(H)40-120mm |
| Label Roll Inside Diameter | 76mm |
| Label Max Outside Diameter | 350mm |
| Output Power | 1500W |
| Machine Size | 2000*850*1600mm |
| Weight | 250KG |
