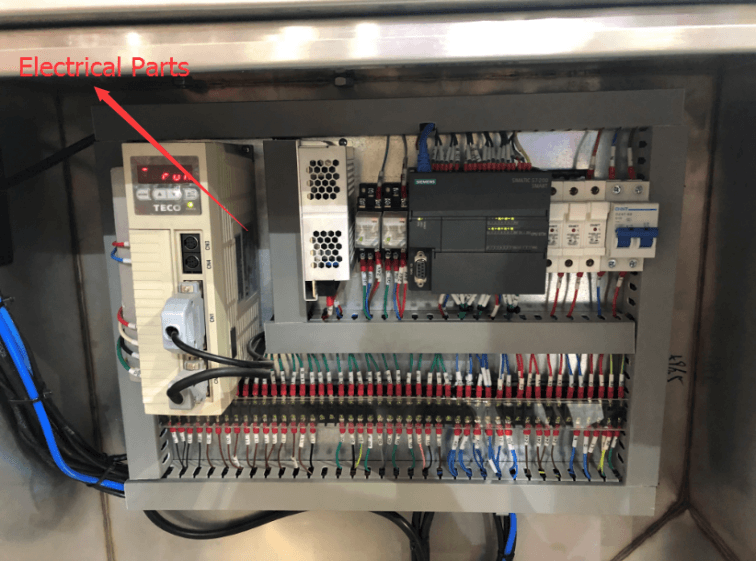

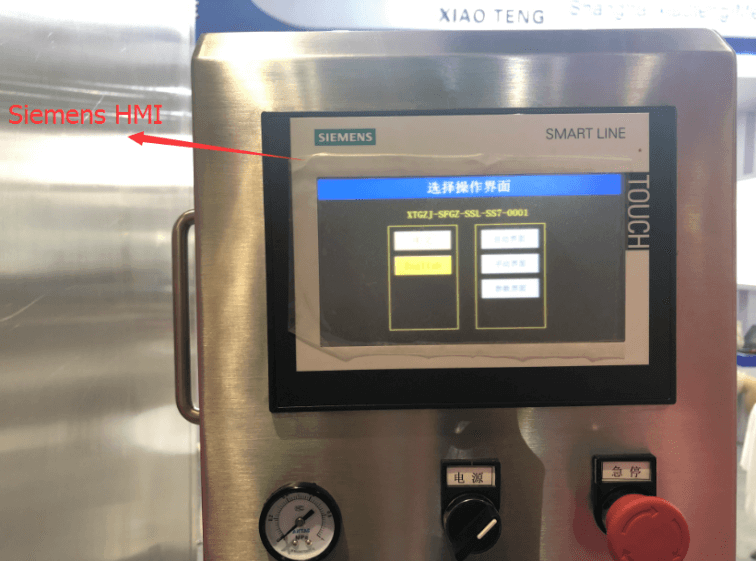

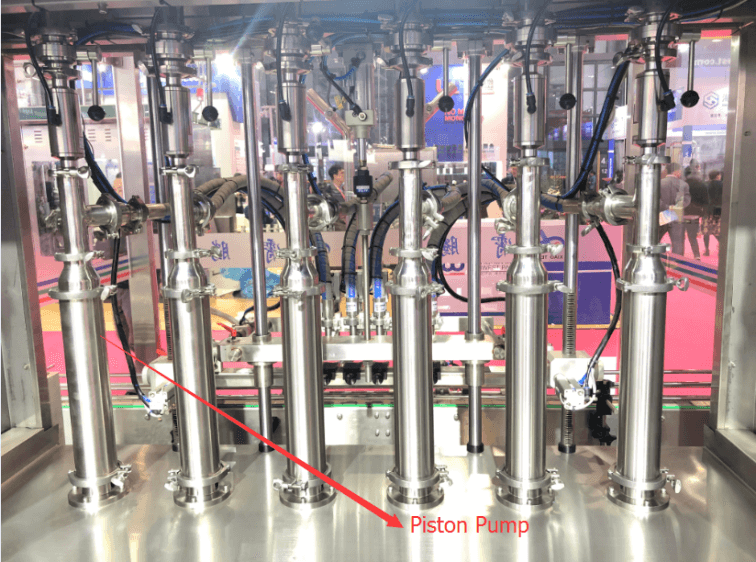

PLC and intelligent Touch Screen. Adopt motor forward and reserve motion to adjust the filling volume automatically, it’s very easy to adjust the filling volume. At the same time, there is a micro-adjustment device for each filling cylinder, ensure the filling precision of each container.

There is individual air collector inside the machine, ensure the stable action of each filling head. Container position will be fixed by air-cylinder, we can adjust the position of filling heads according to the shape of the container, easy to adjust, easy to fix the position, ensure the stable filling action. Drip proof system adopt air-cylinder control, it will plug up the filling nozzle, meanwhile adopts a new patent principle- Vacuum pump back, completely avoid the material leak.

The tank with material detection control system, avoid material overflow, and meanwhile it can keep the material level at the same height, ensure of stable pressure.

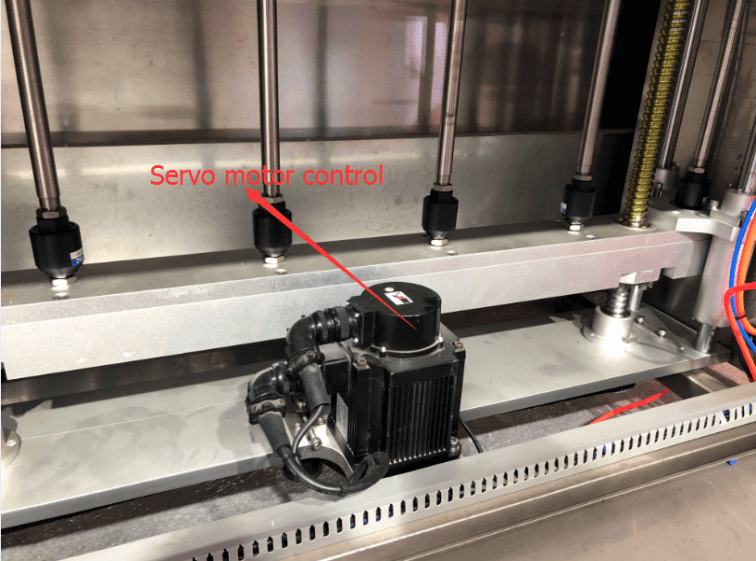

The machine adopt servo motorr driven, containers will be sent to the position, then the filling heads will dive into the container, filling volume and filling time can be set in orderly. When it filled up to the standard, servo motor go up, container will be sent out, one working cycle is finished.
