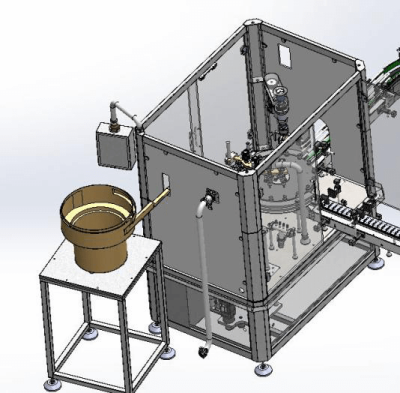

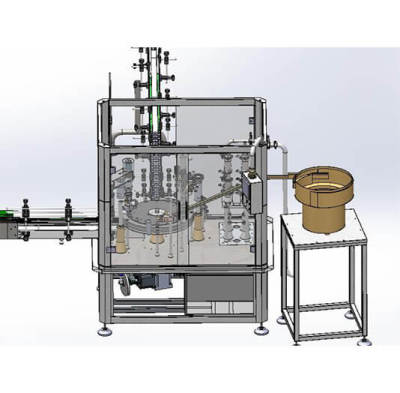

XT-DPA-4 Automatic Filling and Capping Machine
XT-DPA-4 Automatic Filling and Capping Machine
XT-DPA-4 Automatic Filling and Capping Machine
XT-DPA-4 Automatic Filling and Capping Machine
XT-DPA-4 Automatic Filling and Capping Machine
XT-DPA-4 Automatic Filling and Capping Machine
XT-DPA-4 Automatic Filling and Capping Machine
XT-DPA-4 Automatic Filling and Capping Machine
  • Product Details
  • characteristic
  • Configuration list

Purpose and performance

  • This machine is mainly applicable to filling/capping operation for 20-500ml plastic or glass bottles,2 pumps are used for double-headed filing/capping.In order to increase corresponding output, servo control the pumps can be added. This machine structure allows filling production for high-capacity liquid like large infusion,syrup etc,This machine has simple structure,is convenient in maintenance and easy for operation.It is advised to choose corresponding electric configuration and dust cover.

Main features and performance:

  • ◆Bottle feeding, filling and capping the cap; linear bottle feeding; liquid level filled can be tracked and controlled by stainless steel valve to ensure there is no adherent liquid and dropping liquid; detect with optical fiber; cap putting by cylinder; stop putting cap with no bottles there; percent of pass of putting plug is high.

  • ◆Good safety barrier propterty; Convenient to operate, adopting selective touch screen to operate.

  • ◆Widely used for the volume production of infusion solutions in bigger bottles and large capacity vaccine.

  • 1: servo motor controls the peristalsis pump quantitative filling, the filling degree is accurate, more stable and convenient than the traditional pneumatic components control the piston;
  • 2: each filling head has anti-drip setting to ensure the neatness of the machine;
  • 3: the stock bin is equipped with high and low level alarm, low level automatic feeding, high level automatic stop feeding;
  • 4. Filling speed, filling volume and other routine operations can be operated on the display screen;
  • 5: the frame of the machine is sus304 stainless steel, and the contact part is sus316
  • 6: the machine has the function of bottle without filling, material without filling and alarm without cover;
  • 7: the whole machine is easy to remove, easy to clean, and covers a small area.
Technical Features:

Kind of bottle

Various kinds of plastic/glass bottle

Bottle size*

Min. Ø 10mm   Max. Ø60mm

Kind of cap

Alternative Screw on cap, alum. ROPP cap

Cap size*

Ø 5~ Ø45mm

Filing nozzles

2heads

Speed

25-30bpm (e.g 25bpm@60ml)

Alternative Filling volume*

5~60ml

Filling accuracy

±1%

Power*

220V 50/60Hz 1.5kw

Compress air require

10L/min, 4~6bar

Machine size mm

Length 2400mm, width 1200mm, height 1950mm

Machine weight:

1250kgs

  • Contact with material will use SS316 and others is SS304
  • PLC & HMI uses SIEMENS brand,Germany
  • Aircylinder uses AIRTAC brand,TaiWan
  • Circuit breaker uses SCHNEIDER brand,France
  • Peristalsis pump uses Chinese
  • AC motor uses JSCC brand,Germany-China
  • Inverter uses DANFOSS brand,Denmark
  • Fiber sensor uses KEYENCE brand,Japan
  • Relay uses OMRON brand,Japan
  • Filling system material uses SUS316L
  • Rack material uses SUS304
  • 1set of rotary star wheel system
  • 1 set of 2 nozzle Filing system
  • 1 set of capping system and bottleneck fixing device
  • 1 set of cap unscrambler
  • 1 set of conveyor (L:2.4 meter)
  • 1 set of capping system and bottleneck fixing device
  • The machine have protective cover
  • Servo motor uses Siemens,(for capping)
